Description

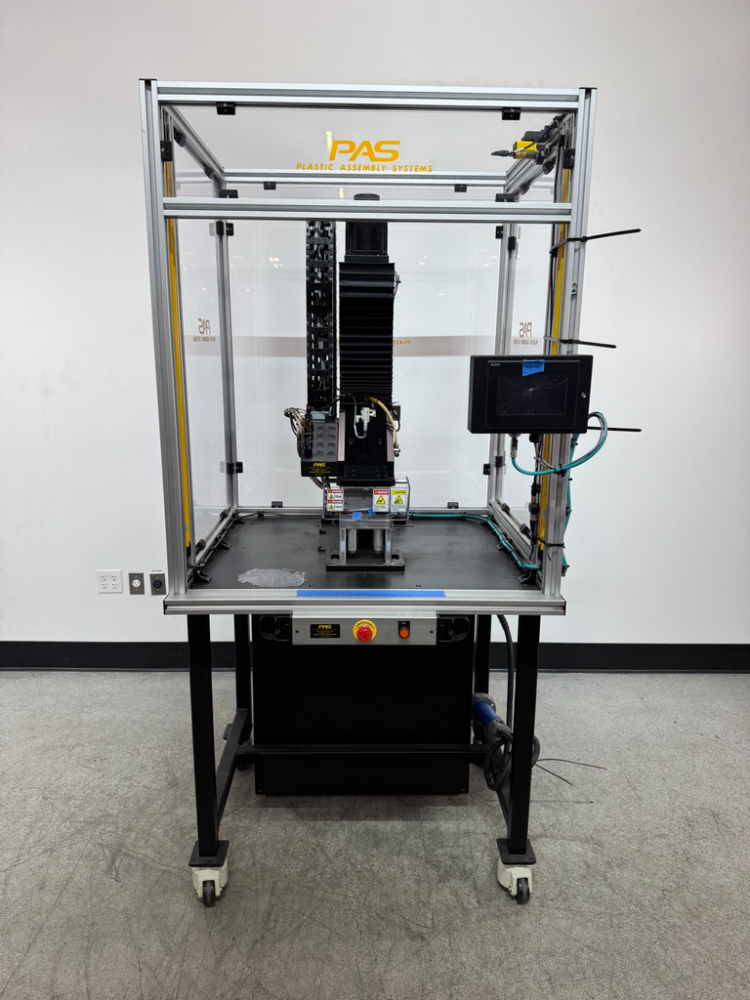

This system is a Plastic Assembly Systems / PAS servo heat staking and thermal assembly workcell, Serial Number 091423.1, configured inside a full safety enclosure with aluminum extrusion framing, clear viewing panels, guarded operator access, emergency stop/reset controls, and integrated machine automation hardware.

The main assembly includes a vertical servo-driven heat staking actuator with cable carrier, Mitsubishi Electric servo motor, bellows-protected motion column, upper tooling assembly, lower fixture plate, guarded pinch-point area, and integrated heater/tooling connection hardware. The work area includes PAS-branded tooling components and a lower fixture assembly marked 091423.1 / 122216.5.402.

The operator interface is a Mitsubishi Electric touchscreen HMI mounted on the side of the enclosure. The HMI screen surface is cracked across the display area. Functional status of the touchscreen, LCD, HMI program, and machine controls has not been verified.

The electrical identification label lists the manufacturer as Plastic Assembly Systems, Bethany, CT and shows SN 091423.1. The system is rated for 240 VAC, 3-phase, 60 Hz, with 27 A FLA, 9.4 A motor FLA, 100 kA SCCR, and Class J max 40 A supply fuses. The machine includes a Socomec main disconnect and a blue industrial power plug.

Technical Description

The PAS servo heat staking platform is designed to join thermoplastic components by applying controlled heat and force through heated tooling. PAS documentation for the STS2000 platform describes servo Z-axis control, direct-contact heated tooling, controlled time/temperature/pressure/cooling, integrated temperature controls, touch screen control, job storage, and precision Z-axis motion control.

The unit includes a Mitsubishi Electric HG-SR152BK AC servo motor. The motor label shows:

• Mitsubishi Electric HG-SR152BK AC Servo Motor
• 1.5 kW
• 3AC 112 V
• 9.4 A
• 2000 r/min
• IP67
• CE marked

The machine includes multi-zone heater/tooling connection blocks, pneumatic fittings, guarded tooling, emergency stop/reset controls, light curtain-style safety hardware, and an enclosed production work area. FBS ii safety package, touchscreen display, aluminum extrusion guarding, light curtain safety sensors, and safety windows, all of which are consistent with the installed enclosure shown in the photos.

Condition Notes

• Mitsubishi HMI screen is visibly cracked/damaged.
• Touchscreen functionality has not been verified.
• Machine power-up and cycle testing have not been confirmed.
• HMI program/project file status is unknown.
• Servo motor, tooling assembly, enclosure, safety guarding, E-stop/reset controls, pneumatic hardware, and electrical identification labels are present.
• used, as-is, with damaged HMI .

Accessories / Components Included

• Plastic Assembly Systems / PAS servo heat staking workcell
• Full aluminum extrusion safety enclosure with clear panels
• Mitsubishi Electric touchscreen HMI — cracked/damaged screen
• Mitsubishi Electric HG-SR152BK AC servo motor
• Servo-driven vertical actuator column
• Cable carrier assembly
• Bellows-protected motion column
• Upper heat staking tooling assembly
• Lower tooling/fixture plate
• Guarded pinch-point/tooling area
• PAS-labeled heater/tooling connection block
• Multi-zone circular tooling/heater connector interfaces
• Pneumatic fittings and tubing
• Light curtain-style safety hardware
• Emergency stop button
• Reset button
• Socomec main disconnect
• Industrial 240V 3-phase power plug
• Rolling machine base with casters

Electrical Requirements

• Max Voltage: 240 VAC
• Phase: 3-phase
• Frequency: 60 Hz
• FLA: 27 A
• Motor FLA: 9.4 A
• SCCR: 100 kA
• Supply Fuses: Class J, max 40 A
• Supply Fuse SCCR: 100 kA
• Enclosure Type: Type 1
• Diagram Number: 091423.1

Dimensions & Weight

• 42" W × 35" D × 86" H
