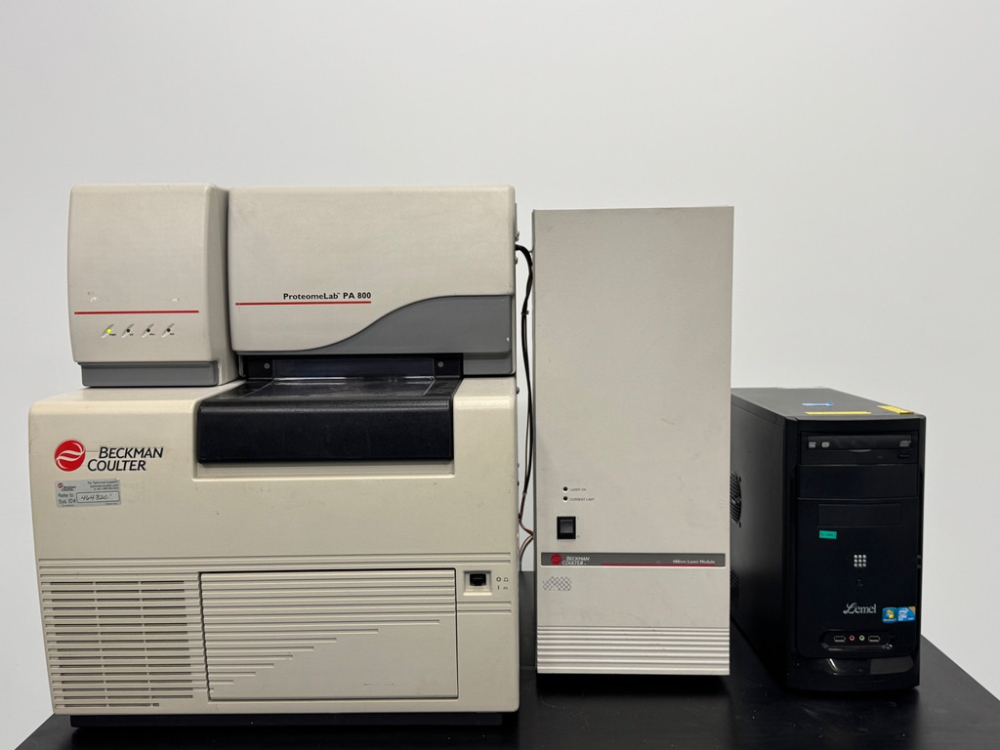

The Beckman Coulter ProteomeLab PA 800 Protein Characterization System is a capillary electrophoresis analyzer designed for protein characterization, charge variant analysis, purity assessment, glycoprotein analysis, and related biomolecular separations. The system utilizes high-voltage capillary electrophoresis combined with optical detection technologies to deliver high-resolution separations and quantitative analytical performance.

Configuration:

• Beckman Coulter ProteomeLab PA 800 Main Unit
• Catalog Number: 391610
• Serial Number: 3062023
• Integrated sample tray and capillary compartment
• Fluidics syringe assembly visible behind front service panel
• Dedicated Beckman Coulter 488 nm Laser Module
• LIF 488 NM Laser Module
• Catalog Number: 727620
• Serial Number: 228625
• RS-232 and controller interface connections
• Dedicated workstation computer
• Windows 7 operating environment visible
• Intel Core 2 Quad platform

The laser module:

• LIF 488 NM Laser Module
• Model: LIF Laser
• Cat No: 727620
• Serial No: 228625

Power requirements visible:

• Main system: 100-240V
• 8A
• 50/60Hz

Accessories and Components Included

• Beckman Coulter ProteomeLab PA 800 Main Analyzer
• Beckman Coulter 488 nm LIF Laser Module
• Integrated sample trays
• Fluidics syringe assembly
• Dedicated workstation computer
• Internal system components shown in photographs

Dimensions and Utilities

Approximate System Dimensions:

Main PA 800:

• Width: 25 in (64 cm)
• Depth: 27 in (69 cm)
• Height: 29 in (74 cm)

Laser Module:

• Approx. 12 in W x 24 in D x 28 in H

Combined Shipping Weight:

• Approx. 250-325 lb packaged

Utilities:

• 100-240V
• 8A
• 50/60Hz
• CE Mark Visible
• EU CE Compliant

Country of Origin:

• United States
•
