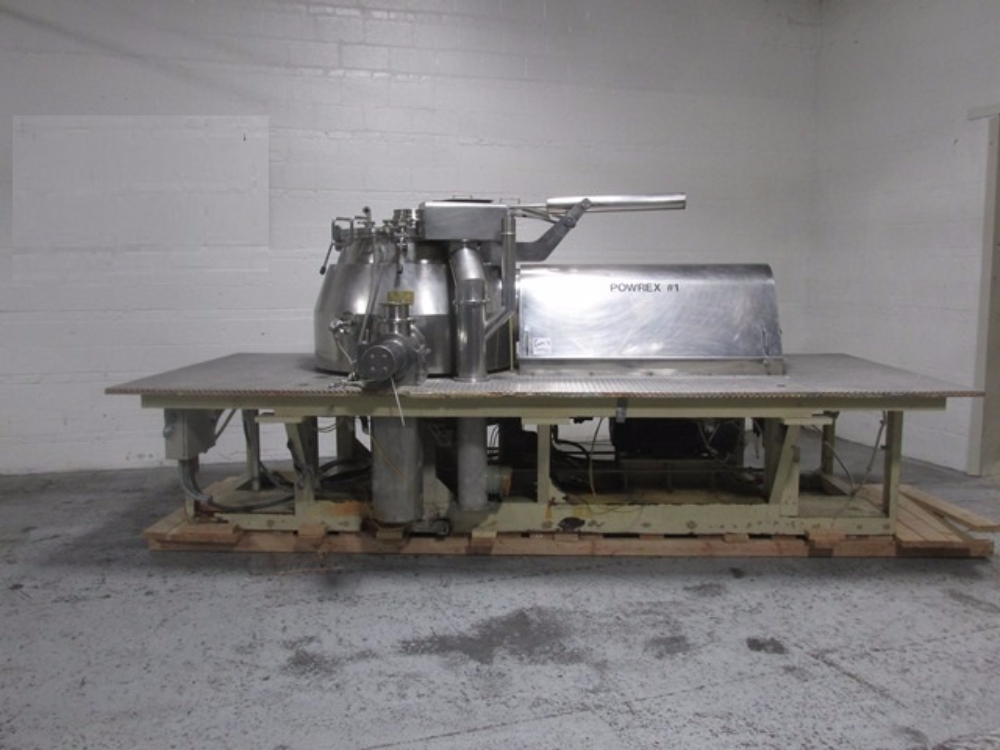

Glatt Powrex 600 High Shear Mixer
Glatt Powrex 600 High Shear Mixer the proven standard machine for efficient granulate and pellet production. It permits wet granulation with a pressure shock resistance up to 2 bar without pressure relief.
Product Code: 275800
Manufacturer: Glatt
Model: FM-VG600
Year: 1995
Serial: 93.3313
Location: Available upon request
- Product Details
- Capabilities
Glatt Powrex 600 High Shear Mixer the proven standard machine for efficient granulate and pellet production. It permits wet granulation with a pressure shock resistance up to 2 bar without pressure relief.
Stainless steel product contact surfaces
Jacketed bowl
75 kw main blade
22/11 kw chopper
Pneumatically operated side discharge plug valve
On stand
With integrated bottom mount U30 Quadro Comil
Jacketed bowl
75 kw main blade
22/11 kw chopper
Pneumatically operated side discharge plug valve
On stand
With integrated bottom mount U30 Quadro Comil
Make: Quadro
Model: U30
Serial #: U30-0004
Year: 1995
Stainless steel construction
Model: U30
Serial #: U30-0004
Year: 1995
Stainless steel construction
Total Capacity: 600 L
Weight (kg): 3000
Dimensions (mm): 2250 x 2400 x 2320
Application: For production
Features:
Weight (kg): 3000
Dimensions (mm): 2250 x 2400 x 2320
Application: For production
Features:
- Produce spherical particles heavier than those granulated in a fluidized bed.
- Reduced cleaning time thanks to the high fluidity of their vessel structure.
- Extremely fast and efficient mixing and granulation in a single machine at high production rates.
- Easy operation with a fewer parameter settings.
- Small footprint achieved by the company body and limited space or their auxiliary equipment.
